High-Temp Bearings
At HAWC Bearings, we specialize in engineering high-temp bearing solutions for the most demanding thermal environments, spanning a remarkable temperature range from cryogenic -200°C to scorching 800°C. This extreme range necessitates a deep understanding of material science, lubrication technology, and bearing design principles.
Navigating the Challenges of Extreme Temperatures:
The operational window of -200°C to 800°C presents unique challenges that standard bearings cannot withstand.
- Cryogenic Temperatures (-200°C to -150°C):
- Material embrittlement: Many standard bearing steels become brittle at cryogenic temperatures.
- Lubricant solidification: Traditional lubricants freeze, leading to increased friction and seizure.
- Thermal contraction: Significant dimensional changes require precise clearances.
- High Temperatures (400°C to 800°C):
- Oxidation and creep: Materials degrade due to oxidation and creep deformation.
- Lubricant breakdown: Conventional lubricants decompose, resulting in bearing failure.
- Reduced hardness and strength: Material properties deteriorate, decreasing load-carrying capacity.
- Thermal expansion: large amounts of thermal expansion require special internal clearances.
HAWC Bearings: Precision Engineered for Extreme Thermal Conditions:
We leverage advanced materials and design techniques to deliver high-temperature bearings that excel across this vast temperature spectrum.
Material Selection for Extreme Environments:
- Cryogenic Applications:
- Austenitic stainless steels (e.g., 304, 316): Maintain ductility and toughness at low temperatures.
- Specialized polymers (e.g., PTFE, PEEK): Offer low friction and resistance to cryogenic fluids.
- High-Temperature Applications:
- High-alloy steels (e.g., M50, 440C): Retain hardness and strength at elevated temperatures.
- Ceramic materials (e.g., silicon nitride, zirconia): Exhibit exceptional high-temperature stability and wear resistance.
- Inconel and other superalloys: For the highest temperature applications, and corrosive environments.
Lubrication Strategies for Extreme Temperatures:
- Graphite-Impregnated Materials: For high-temperature applications, we employ materials impregnated with graphite, providing excellent dry lubrication capabilities.
- PTFE and Polymer Composites: At cryogenic temperatures, PTFE and other polymer composites offer low friction and resistance to extreme cold, while inherently being self lubricating.
- Ceramic Composites: Advanced ceramic composites, such as silicon nitride and zirconia, can be engineered with self-lubricating properties, maintaining performance at very high temperatures.
- Metal Matrix Composites: combining metals with solid lubricants for high strength, and self lubrication.
Design Considerations for Thermal Stability:
- Clearance Optimization: Precisely calculated internal clearances to accommodate thermal expansion and contraction.
- Material Compatibility: Careful selection of materials with similar coefficients of thermal expansion to minimize stress.
- Heat Transfer Management: Design features to dissipate heat and prevent overheating.
- Specialized Cage Designs: Cages made from heat resistant materials, and designs that allow for thermal expansion.
Technical Specifications and Performance Metrics:
- Operating temperature range: -200°C to 800°C.
- Load capacity: Radial and axial load ratings at specified temperatures.
- Speed limits: Maximum rotational speeds at operating temperatures.
- Material specifications: Detailed material compositions and properties.
- Coefficient of friction data at specific temperatures.
Applications Requiring Extreme Temperature Bearings:
- Cryogenic pumps and valves.
- Liquid natural gas (LNG) processing.

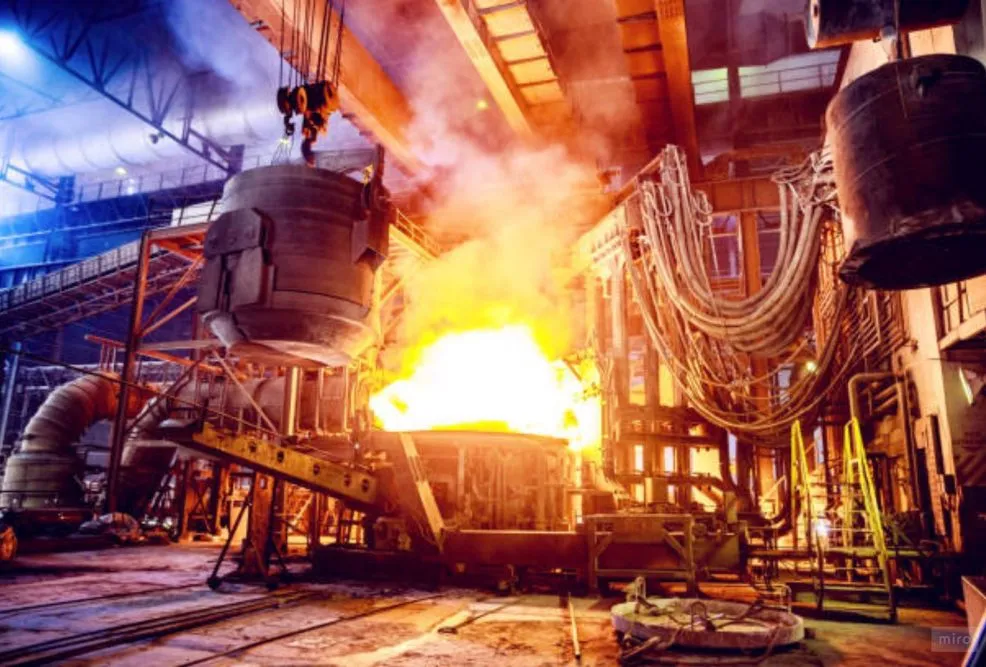

- High-temperature furnaces and kilns.
- Gas turbines and jet engines.
- Thermal processing equipment.
- Vacuum furnaces.
- Space exploration applications.
HAWC Bearings: Your Partner in Extreme Environments:
Our team of engineers possesses the expertise to design and manufacture high-temperature bearings that meet the most stringent requirements. We provide comprehensive technical support, including material selection, lubrication recommendations, and application engineering. Contact us today to discuss your specific high-temperature bearing needs.
